Case PUMA 130 145 160 and CVT Versions Tractor
On this site you can buy repair books for tractors, combines, wheel loaders, skid-steer loaders, hydraulic excavators, backhoe loaders, crawler tractors and another agri & construction machinery.If you cannot find service manuals which you need please contact with US AGROMANUAL@gmail.com
CASE TRACTOR SERIES PUMA SERVICE MANUAL
Form no. 84479144
Models: PUMA 130/130 CVT & 145/145 CVT & 160/160 CVT
Language: English

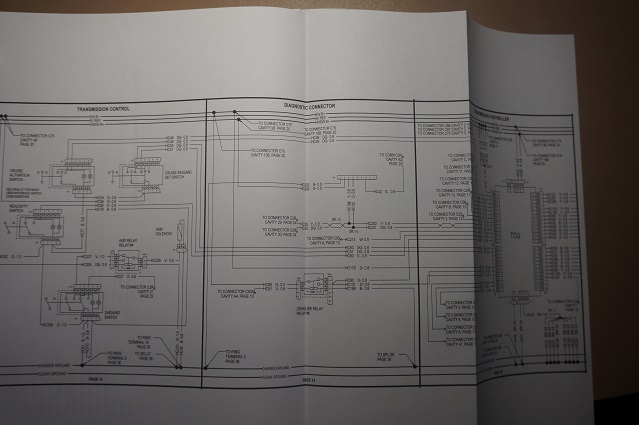

Number of pages: 2469 with A3 format schematics
Main Sections:
INTRODUCTION
HYDRAULIC, PNEUMATIC, ELECTRICAL, ELECTRONIC SYSTEMS
PRIMARY HYDRAULIC POWER SYSTEM
PRIMARY HYDRAULIC POWER SYSTEM Closed center mechanical remote valve
PRIMARY HYDRAULIC POWER SYSTEM Electro-hydraulic remote valve
SECONDARY HYDRAULIC POWER SYSTEM
HYDRAULIC COMMAND SYSTEM
PNEUMATIC SYSTEMELECTRICAL POWER SYSTEM
ELECTRONIC SYSTEM
FAULT CODESENGINE AND PTO IN
ENGINEFUEL AND INJECTION SYSTEM
AIR INTAKE SYSTEM
EXHAUST SYSTEM
EXHAUST SYSTEM Emissions control
ENGINE COOLANT SYSTEM
TRANSMISSION, DRIVE AND PTO OUT TRANSMISSION Semi-Powershift TRANSMISSION Powershift

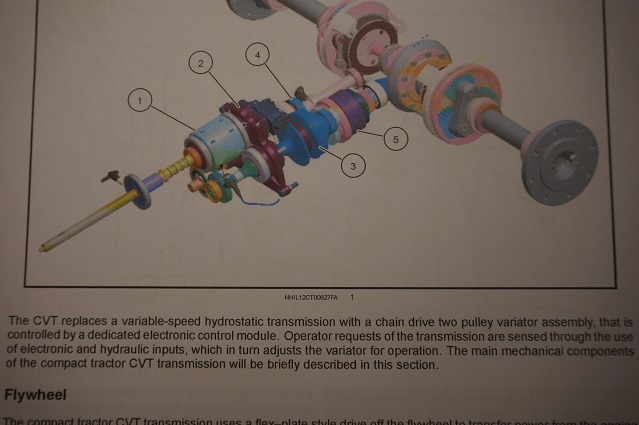

TRANSMISSION Continuously Variable Transmission (CVT)
ADDITIONAL REDUCERS Overdrive
REAR PTO Mechanical
REAR PTO Hydraulic
FRONT PTO Hydraulic
AXLES, BRAKES AND STEERING
FRONT AXLEREAR AXLE
2WD-4WD SYSTEM
Hydraulic
STEERING
Hydraulic
STEERING Autoguidance
SERVICE BRAKE Hydraulic
SERVICE BRAKE Pneumatic
PARKING BRAKE Mechanical
PARKING BRAKE Electronic
BRAKE CONNECTION Hydraulic
SUSPENSION Hydraulic
WHEELS AND TRACKS Wheels
FRAME AND CAB
FRAME Primary frame
SHIELD
USER CONTROLS AND SEAT
USER PLATFORM
ENVIRONMENT CONTROL Heating, ventilation and air-conditioning
HITCH AND WORKING TOOL
HITCH Front hitch
HITCH Rear hitch
HITCH Electronic draft control
SERVICE MANUAL PAPER VERSION:
