New Holland TR86 TR87 TR88 Combine
On this site you can buy repair books for tractors, combines, wheel loaders, skid-steer loaders, hydraulic excavators, backhoe loaders, crawler tractors and another agri & construction machinery.If you cannot find service manuals which you need please contact with US AGROMANUAL@gmail.com
NEW HOLLAND COMBINE SERIES TR SERVICE MANUAL
Form no. 40008630
Models: TR86 & TR87 & TR88
Language: English
Number of pages: 1902 with A3 format schematics

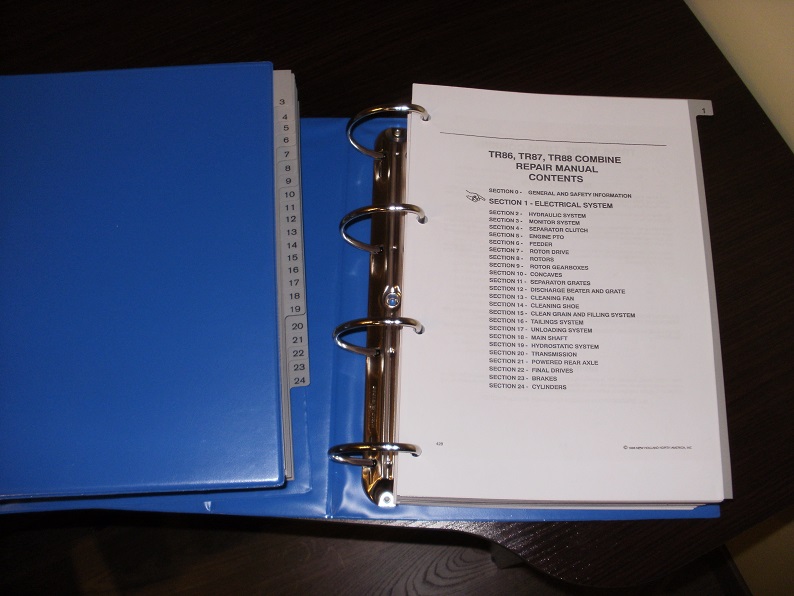

Main Sections:
General and safety information

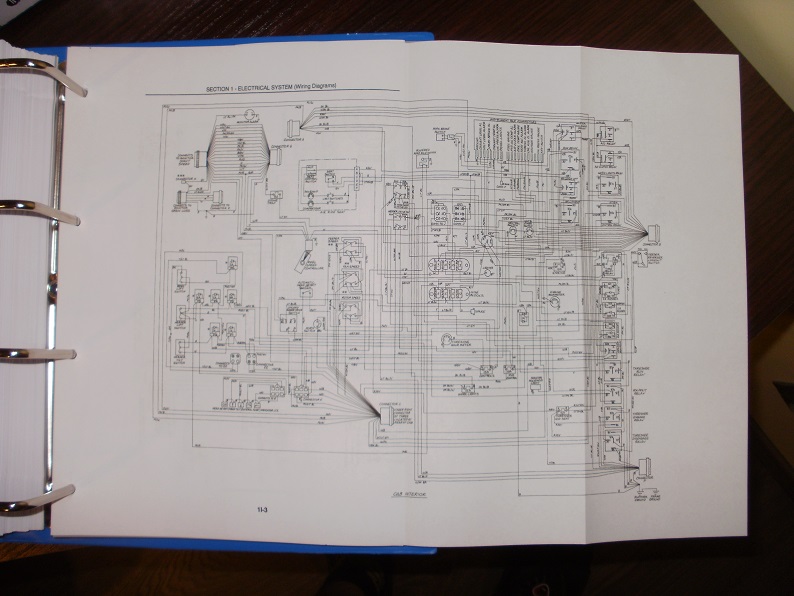

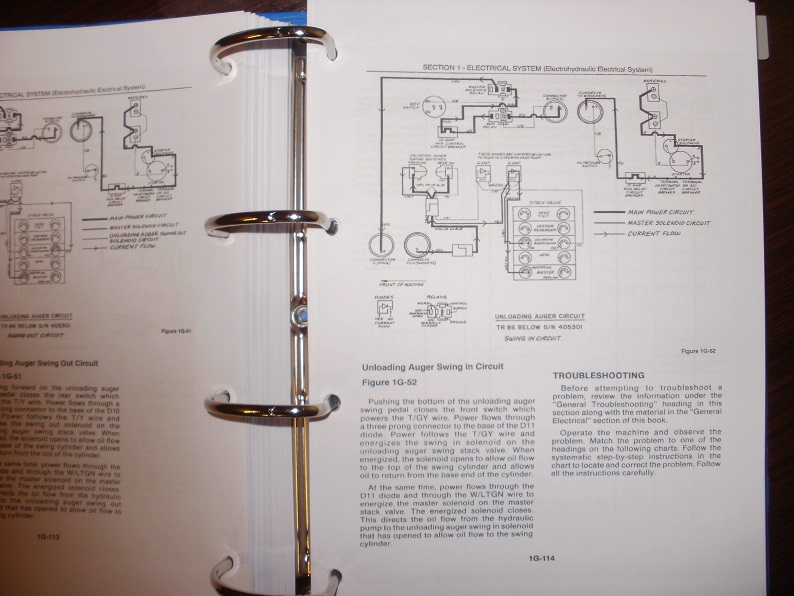

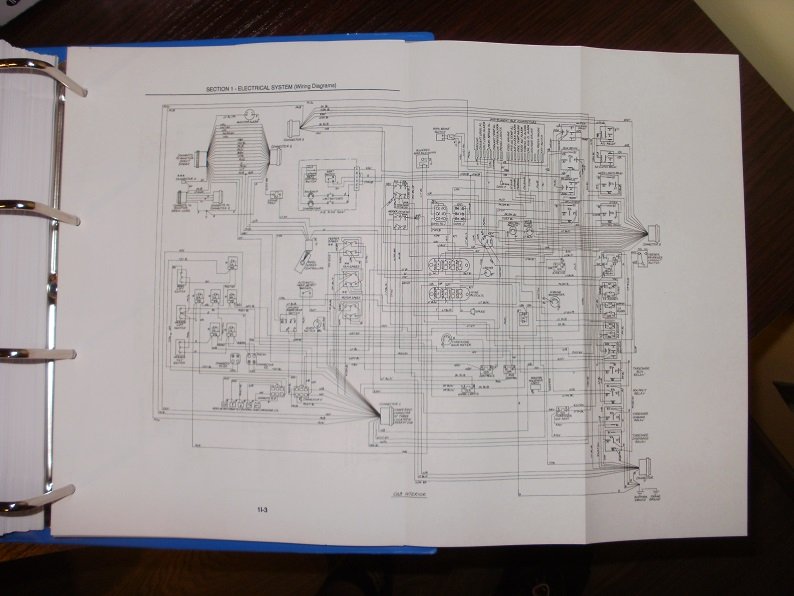

Electrical system (full wiring schematics)
Hydraulic system (full hydraulic schematics)
Monitor
Separator clutch
Engine
PTO
Feeder
Rotor drive
Rotors
Rotor gearboxes
Concaves
Separator grates
Discharge beater and grate
Cleaning fanCleaning shoe
Clean grain and filling system
Tailings system
Unloading system
Main shaft

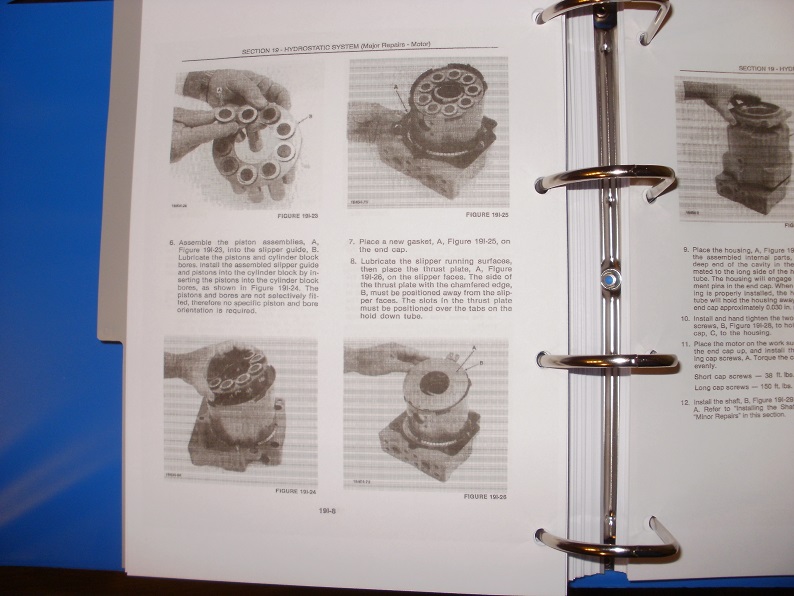

Hydrostatic system
Transmission
Powered rear axle
Final drives
Brakes
Cylinders
 |
 |
 |
 |
PAPER VERSION:
CD-ROM VERSION:
